Anti Graffiti

Anti-Graffiti Powder Coatings:

Powder with resistance to contamination:

1. Product features
The main characteristic of the anti-graffiti powder 11X-XXX-YYYY (previous code: DS-0XXXA) is the high resistance to contamination: a special formulation makes products coated with this powder impenetrable to external pollutants, such as dirt and permanent markers/inks. While the cleaning of surfaces painted with regular powders would leave stains or blotches, surfaces painted with anti-graffiti powder will be cleaned easily with no traces of pollutants. These powders are all for sublimation and they are typically smooth and glossy.

2. Technical information
- Technical data
Powder type Polyurethane
Resistance class Class 1
Performance (in surface/mass) 13,1 m2/Kg
Specific weight 1,27 ± 0,03 g/cm3

- Application methods and curing conditions:

Powder available for corona charging application. Curing time and temperature:

- 25 minutes at 195°C ñ 383°F (metal temperature).
- 20 minutes at 200°C ñ 392°F (metal temperature).
- 15 minutes at 205°C ñ 401°F (metal temperature).

Recommended thickness: 60-80 micron.

- Mechanical properties and durability
Test Standard Reference Result
Buchholz ISO 2815 ok
Adhesion ISO 2409 No adhesion loss; ok
Salt Spray  ISO 9227 corrosion<4 mm; ok

3. Variants and special formulations
There are several variants of this series. This powder can be produced:
- Clear or colored opaque;
- Super durable, Class 2;
- Low curing;
- Antimicrobial.

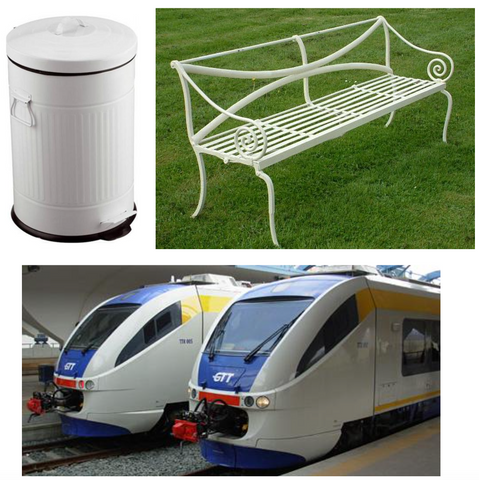

4. Possible usage and applications
The Anti-graffiti series (11X-XXX-YYYY) provides a reliable solution for areas subject to the risk of dirt and contamination such as urban furniture and public spaces. In addition, this powder coating has great advantages in office environments where ink stain may soilshelves and objects. Anti-graffiti powders provide the ability to remove dirt very easily, while maintaining a clean appearance.


5. Anti-graffiti test
The anti-graffiti properties of this series of powders are tested according to the international standard UNI 11246, which defines the method and the procedures to determine the resistance to contamination. Some of the steps of the procedure are shows below:


Several staining agents have been tested, removing each one of them with a suitable cleaning product.

Anti-graffiti DS-0810SA(top coat on white base) soiled on the powder-coated surface with the tested staining agents

After removal of the staining agents with different kinds of cleaning products

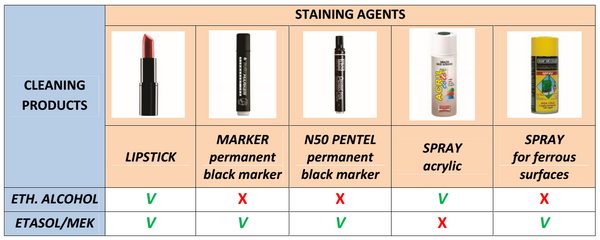

Effectiveness of cleaning products toward tested staining agents
DS-0810SA (top coat on white base PE411)


White polyesther


Comparison between a standard powder coating and anti-graffiti


6. Anti-graffiti test with colored powders
The anti-graffiti proprieties are also tested soiling with several staining agents some sample panels painted with DS-0821-SA (colored powder suitable for sublimation) and with PU RAL shades. The steps of this test are:
- Soiling of the pattern with: lipstick, marker, N50 pentel, acrylic spray;
- Drying of the staining agents in an oven at 80°C (176°F) for 120í;
- Conditioning, at 23°C (73.4°F), for at least 120í with relative humidity at 50%;
- Removing of the staining agents with commercial ethylic alcohol;
- Removing of the staining agents with a mixture etasol/MEK 70:30. Test on DS-0821-SA


Test on DS-0821-SA


OVER: Panel painted with DS-0821SA soiled with the tested staining agents.
BELOW: Panel painted with DS-0821SA after cleaning with commercial ethylic alcohol.



OVER: Panel painted with DS-0821SA soiled with the tested staining agents.
BELOW: Panel painted with DS-0821SA after cleaning with a mixture etasol/MEK 70:30.


Effectiveness of cleaning products toward tested staining agents on DS-0821SA


*mixture etasol:methylethylchetone 70:30


Test on a sample panel painted with 11B-089-A038 (PU Smooth Ivory Anti-graffiti ìRAL 1013î)


LEFT: Sample panel painted and soiled with the tested staining agents.
RIGHT: Panited sample panel after cleaning with a mixture etasol/MEK 70:30.


Test on a sample panel painted with 11B-119-A038 (PU Smooth Yellow Anti-graffiti ìRAL


LEFT: Sample panel painted and soiled with the tested staining agents.
RIGHT: Panited sample panel after cleaning with a mixture etasol/MEK 70:30.


Test on a sample panel painted with 11B-176-A038 (PU Smooth Brown Anti-graffiti ìRAL 8003î)


LEFT: Sample panel painted and soiled with the tested staining agents.
RIGHT: Panited sample panel after cleaning with a mixture etasol/MEK 70:30.

Test on a sample panel painted with 11B-175-A038 (PU Smooth Green Anti-graffiti "RAL 6029")


LEFT: Sample panel painted and soiled with the tested staining agents.
RIGHT: Panited sample panel after cleaning with a mixture etasol/MEK 70:30.


Effectiveness of cleaning products toward tested staining agents on PU RAL shades


*mixture etasol:methylethylchetone 70:30




7. Resistance to chemicals (Acetone)
The resistance to chemicals has been tested for this series. A 1 ml amount of commercial acetone* has been poured on the surface of a sample coated with PE411 + DS- 0810SA; after 10 seconds the solvent has been wiped with a soft cloth. The test has been simultaneously carried out on a standard white polyester. The test has shown how a standard powder-coating product lose gloss when touched by aggressive solvents like acetone, leaving a stain where the drop was, and damaging the surface of the sample. The sample coated with the antigraffiti product DS-0810SAinstead was totally unchanged, with no loss of gloss and no stains left in the area of the test, proving exceptional resistance to aggressive solvents.


* mix 90:10 acetone:water
